Custom Boat 1
CBC1 is a very high spec boat which is clear from the second you walk onboard, the high level of finish and attention to detail is complemented by the high quality materials and equipment used.
This boat had been designed from the ground up with ease of living aboard and luxury being the main focus.
Fixed double at bow
L-shaped seating in saloon makes up extra double.
Vetus macerator pumpout
Built using 10/6/4mm plate
Sides have been shotblasted and epoxy coated
Beta Marine 38hp
Solid Fuel stove &
Eberspaceher diesel heater
Victron 1600w inverter, charger and solar unit.
Stern, Saloon, Galley Bathroom, Bedroom Bow

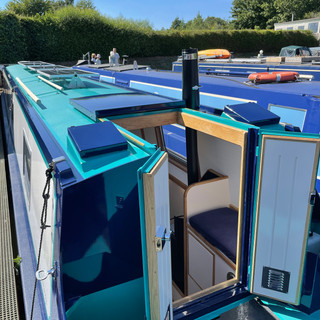

Type: Cruiser stern with wrap around seat
Year: December 2021
Builder: Custom Boat Company

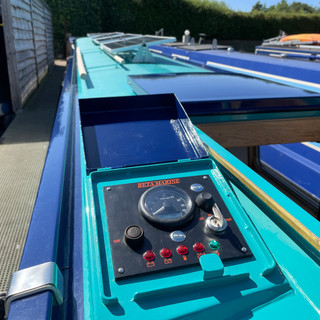

Engine: Beta Marine 38hp
Batteries: 1x Starter 4x Leisure AGM sealed batteries
Berths: Fixed double at bow with underside storage, L-shaped seating in saloon makes into extra double.
Boat Safety Certificate: Declaration of Conformity until 2025

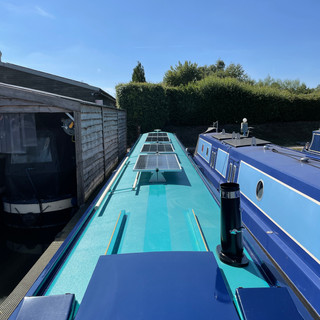

Electrics: 12v& 240v via shoreline and Victron easy solar 1600w inverter 70amp charger and solar control unit. 4 Victron monocrystal solar panels 175w each totalling 700w. Inverter and charging system has Bluetooth connectivity to enable easy monitoring.
Heating: Adventurer 5 solid fuel stove with fitted heat shield,
Eberspacher 5kw diesel central heating supplying towel rail, three anthracite radiators and underfloor heating in the bathroom. Operated by Google Nest and tablet as detailed above.
Water Heating: Calorifier via engine, Eberspacher 5kw and 240v immersion heater (shoreline only)
Lining: Muraspec wall coverings with solid oak surround on upper walls, painted lower walls, ceiling is painted ply with leatherette centre channel and accents fixed in place using Fastmount popper system enabling easy access to the wiring throughout.
Flooring: LVT interlocking flooring (available in many finishes) / carpet in bedroom.

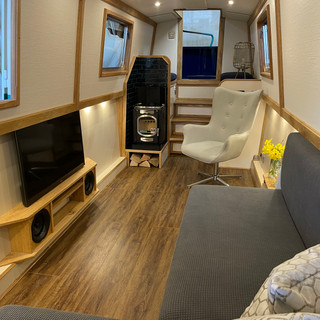

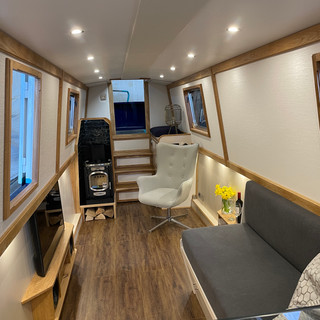

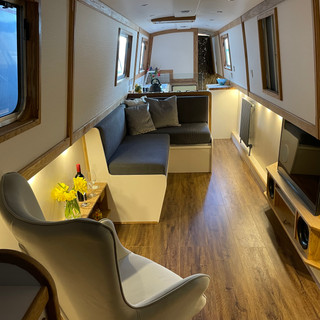

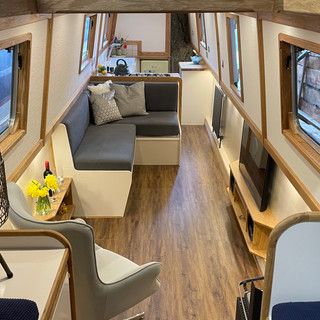

Saloon: Entrance from the wrap around cruiser stern, a welcoming, light and open space that is full of innovative design and luxury from the

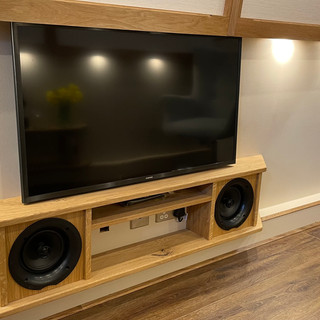

L-shaped seating, built in TV unit (with an entertainment pack TV & Bluetooth speaker system) to the the access stairs and storage unit.

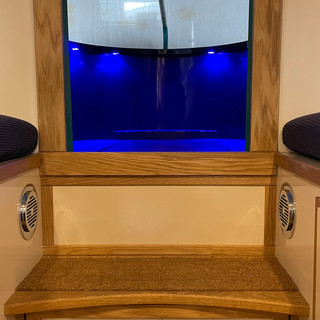

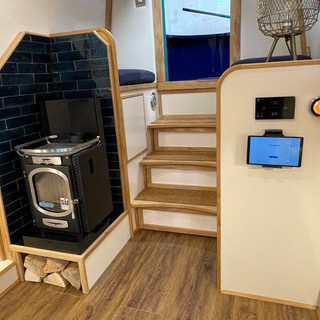

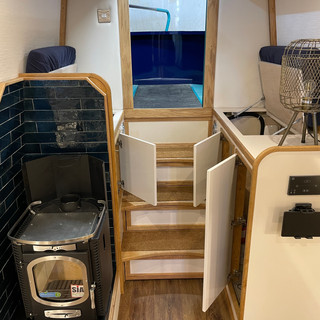

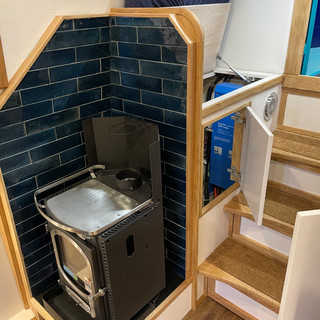

The stairs are covered in Coir matting with solid oak nosing and drawers under each step. To each side of the steps there is a cushioned seat for removing shoes with storage space and room to hang your coats under one side and the boats electrics under the other. The flooring is luxury vinyl tiles (LVT) that are throughout the saloon and galley. Solid oak perimeter frames surround the Muraspec wall coverings giving a beautiful contrast of quality materials. The solid fuel stove is located on the starboard side backing onto the stair storage assembly that is home to the inverter and other electrical controls. The room is lit by over head LED lights, under gunwales lights offer a softer light for the evenings.

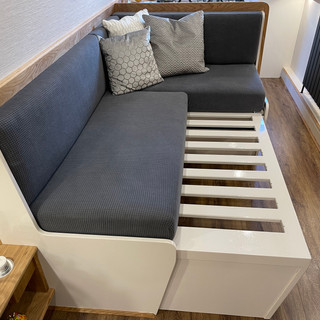

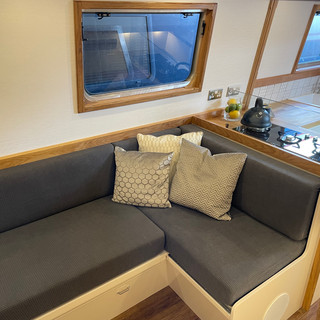

L-shaped seating has three drawers on the face and corner drop in storage under the cushions.

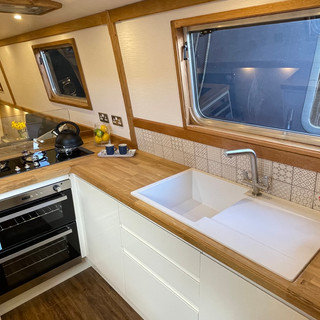

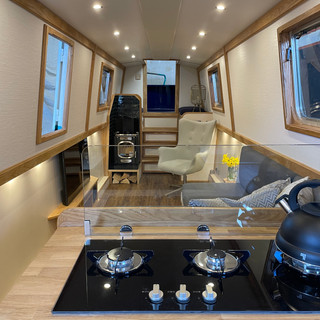

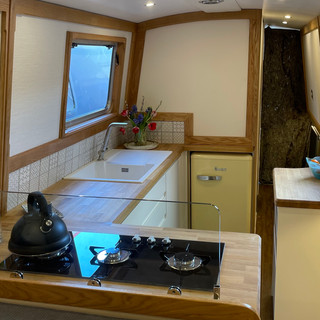

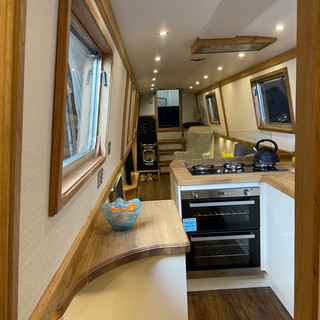

Galley: Forward of the saloon, The L-shape design fitted on to the port side maximises available space and continues the high quality finish and materials of the saloon. Reginox composite resin sink and glass faced 3 burner unit hob fitted into solid oak worktop. The ivory gloss slab units and handless doors maximise storage with five drawers and shelving that makes use of potentially wasted space. Belling integrated oven and grill fitted opposite to Swan 12v fridge and 3kg washing machine. Slim double unit with oak worktop fitted on starboard side.
Bathroom: Forward of the galley, 900x800 shower tray with aqua panel surround and glass bifold door offering over 6ft 2 headroom. Vetus macerator toilet fitted adjacent. Ceramic hand basin fitted with Burlington taps on to unit with shelves and mirror mounted on bulkhead.
Underfloor heating powered by the Eberspacher central heating.
Bedroom: At the bow, Double bed located on the starboard side with a bank of four drawers fitted to underside face. Wardrobe unit built into the port bulkhead offering full height & half height hanging space. Wall mounted vanity unit located on starboard side with mirrored back and glass shelves with stall offer a neat and useful space. Built in steps lead to bow deck through glazes steel doors.
